Microwave Motion Sensor Module

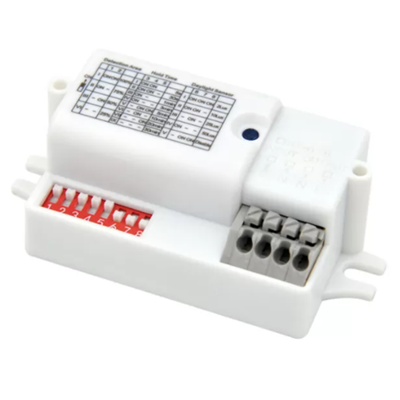

Cost-effective Microwave Motion Sensor with Patented Low Impedance Antenna MC090S

1. Feature

1. Microwave motion detection version.

2. Eight DIP switch setting, distance, time, daylight sensor, multi-speed adjustable.

3. Ultra-small mounting size, multiple mounting options, support for top and bottom mounting options.

4. Super cost-effective, support a variety of lamps,tri-proof lamps, ceiling lamps.

5. The infrared sensor is used to filter out the light sensor, and the light sensitivity value is more accurate, and is not affected by cloudy and sunny days.

6. Low impedance 5.8G antenna for superior immunity to interference.
INQUIRY EMAIL

Parameter

Input	Operating Voltage Range	198-264VAC 50/60Hz
	DC Input Voltage	N/A
	Rated Voltage	220-240VAC 50/60Hz
	No-load Power	≤1.0W
	Stand-by Power	≤0.5W
	Surge Test	Between L and N: 1KV
Output	Working Mode	ON/OFF
	Type of Load	Resistive or Capacitive
	Load Capacity	800W (Resistive) or 400W (Capacitive)
	Current of Load	N/A
	Load surge current	30A relay - 30A (test twidth 500us @230Vac at 50% Ipeak, cold start at full load) or 60A (test twidth 200us @230Vac at 50% Ipeak, cold start at full load)
Interface	1-10V dimmer	N/A
	Synchronization control interface	N/A
	High and Low Level Interface	N/A
	PWM control interface	N/A
	Interface terminal wiring mode	N/A
Sensor	Operating Frequency	5.8 GHz ±74.9 MHz.ISM wave band
	Transmitting power	0.5mW Max.
	Hold time	5S/30S/60S/3min/5min/10min/20min/30min
	DIM down	N/A
	Cut off	N/A
	Detection Area	100% / 75% / 50% / 25%
	Daylight Sensor	2Lux/10Lux/25Lux/50Lux/Disable
	Daylight on/off	N/A
	Detecting Radius	4-7m (Installed at 3m high )
	Mounting Height	2.5-6 m(Suction Top Installation)
	Detecting Angle	Ceiling mount 150°
Wireless module	Operating Frequency	N/A
	Transmitting power	N/A
	transmission distance	N/A
	modulation mode	N/A
	Coding group number	N/A
Operating Environment	Operating Temperature	-20℃…+60℃ Humidity: 85% (non-condensing)
Operating Environment	Storage Temperature	-40℃…+80℃
Certificate Standards	Safety standards	EN61058-1
	EMC standards	EN300440, EN301489-1, EN55015, EN61547, EN61000-3-2, EN61000-3-3, EN62479
	Environmental Requirement	RoHS
	Certificate	CE, TUV & RED
Others	Input/output terminal specifications	0.5-0.75mm²
	IP Rating	IP20
	Protection Class	Class II
	Installation	Built-in installation
	Dimension	623625mm
	Package	Bubble bag + partition + outer box (K=A)
	Net Weight	36g
	Lifetime	50,000h @ Ta Full load
Note 1. “N/A”means not available. 2. Detection area is effected on volume of motion object and motion speed. The detection area is tested by a 165cm height person and walking speed is 0.5m/s.
