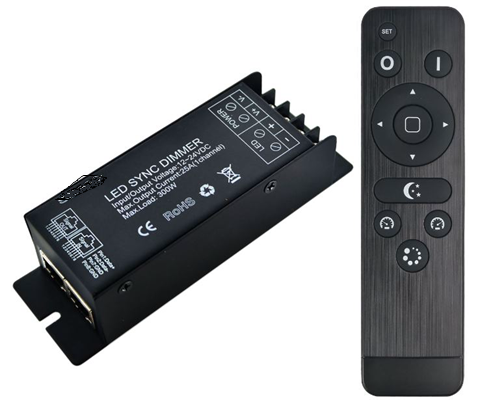

LED Sync Dimmer With RF Button Remote

• LED Sync Dimmer With RF Button Remote
  Technical Parameters

  Controller

  Working temperature	-20-60℃	Supply voltage	DC12V-24V
  Static power consumption	<1W	Mode	3
  Grayscale	256 levels	Speed stage	100 grade
  External dimension	L127*W41*H32 (mm)	Packing size	L138*W131*H35 (mm)
  Net weight	160g	Gross weight	185g
  Output	1 channel	Max. Output current	25A
  Output power	300W	RF distance	≤20m
  PWM frequency	433.92Mhz	Memory function	support

  Remote control



  Working temperature	-20℃~60℃	Supply voltage	DC3V（AAA*2）
  Standby current	<18uA	Working current	<25mA
  Standby power	54uW	Working power	75mW
  Net weight	65g	RF frequency	433.92Mhz
  External dimension	L150*W40*H20 mm	RF distance	≤20m
