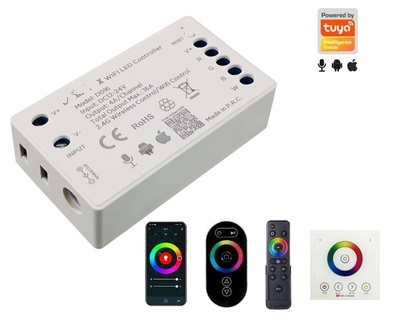

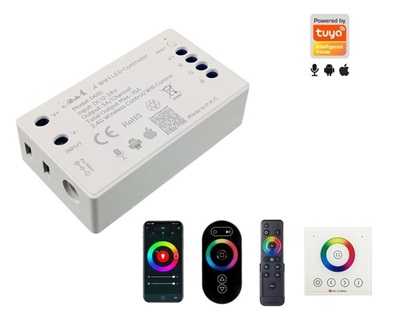

TUYA wifi controller RGB or RGBW

• Product Features

  ● Short-circuit protection.

  ● DC12-24V, four channels output, Max. load current: 3CH*5A; Max. load power: 180W/12V; 360W/24V.

  ● RF remote control is optional, 3 compatible remote controls for options.

  ● WIFI technology powered by Tuya, And compatible with voice control via Amazon Alexa, Google Assistant, Yandex Alice and so on..

  ● Memory function, each time power-on reserve the mode which stop in the last power-off.

  ● Warranty of this product is three years, exclude the artificial situation of damaged or overload working.



  Technical Parameters



  Controller

  Working temperature	-20-60℃	Supply voltage	DC12V-24V
  Static power consumption	<1W	Connecting mode	Common anode
  Grayscale	1024 levels	Speed stage	100 levels
  External dimension	L70*W40*H20 mm	Packing size	L95*W47*H33mm
  Net weight	65g	Gross weight	80g
  RF frequency	2.4GHz	RF distance	≤20m
  Short circuit protection	Yes	Memory function	Yes
  Output	3 channels	Output current	≤5A(each channel)
  PWM frequency	1.95KHz	Max. Output power	12V:<180W, 24V:<360W
