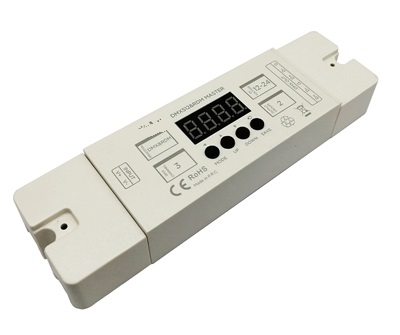

Product Features
1. Working voltage is DC12-24V;
2. 2 groups output signal with same control effect;
3. 4 in 1 functions for Single color/CCT/RGB/RGBW, different control effect to different LED types;
4. Compatible with RDM protocols to identify the number of devices and change the device address;
5. Adopts pushbuttons (MODE UP DOWN SAVE) to make setting and control, the 4-digital tube displays the setting statues intuitively;
6. 3-year warranty.
Technical Parameters
Working temperature |
-20-60℃ |
Supply voltage |
DC12V~24V |
Static power consumption |
<1W |
Output signal |
DMX512/RDM |
Net weight |
106g |
Gross weight |
115g |
Output gray |
100 levels |
Speed of modes |
100 levels |
External dimension |
L162*W46*H25 (mm) |
Packing size |
L170*W50*H29 (mm) |
Output ports |
2 groups |
DMX profiles |
4 profiles PH01 for RGB LED(3 CH) PH02 for RGBW LED(4 CH) PH03 for CCT LED(3 CH) PH04 for Single color LED(1 CH) |
