PWM controllers

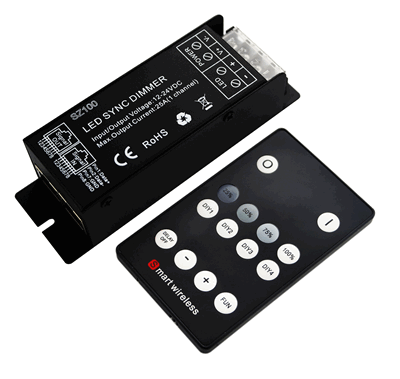

14 KEY LED dimmer

  • SC-SZ100-SYNCDIM-14K adopt the most advanced PWM (Pulse Width Modulation) digital dimming technology, especially design for single color led strip. Adopt RF remote control, transmission Distance up to 20m,no need line-of-sight. 14 function buttons, intuitive panel allowing intelligent lighting with brilliant simplicity. Particularly,SZ100-SYNCDIM series are designed with big power output as 25A (1CH)/300W in the Max. Further, it can be easily connected by RJ45 to achieve all units work synchronization.



  • INQUIRY   EMAIL

Technical Parameters

Working temperature

-20-60℃

Working voltage

DC12V~24V

External dimension

L127*W41*H32 (mm)

Packing size

L147*W85*H73 (mm)

Net weight

180g

Gross weight

210g

Output gray

256 levels

Max. Output current

25A(1channel)

Max. Output power

300W

Frequency of RF remote control

433.9MHz

RF remote rang:

20M
