PWM controllers

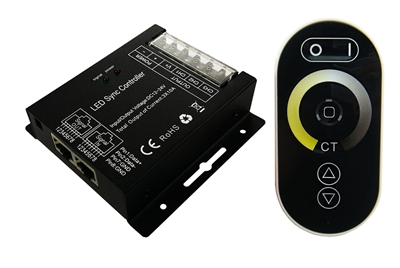

Tunable white LED controller RF

  • Product Feature

    ●Adopt PWM technology, and the color temperature ring in the center has 128 levels in different color temperature value, smooth and flicker-free.
    ●Output two channels ,each allow a maximum current of 8A.
    ●High watt output design, up to 2*8A.
    ●Easy connection to achieve multiple dimmers sync-work by RJ45 terminal.
    ●Adopt RF remote control technology and full touch design.
    ●3-year warranty.

  • INQUIRY   EMAIL

Technical Parameters

Working temperature

-20-60℃

Supply voltage

DC12V~24V

Output

2 channels

Connecting mode

common anode

External dimension

L91*W88*H24 mm

Packing size

L106*W106*H66 mm

Net weight

300g

Gross weight

320g

Output gray

256 levels

Output current

<8A(each channel)

Output power

12V:<192W,24V:<384W

Frequency of RF remote control

433.92MHz
