PWM controllers

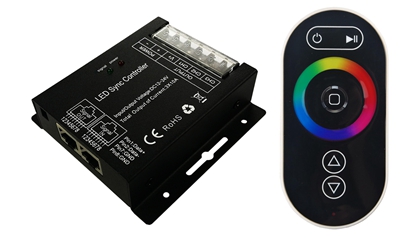

RGB LED Touch Controller RF

  • Product Features

    ●SC-SZ100-Touch is constant voltage, suit for all kinds of the constant voltage LED RGB lamps.
    ●There is a RF remote touch control 5 functions, 1 color ring and 1 color sense lamp in the center, all buttons are in the touch form, the color ring have 128 levels in different colors.
    ●There is a sense light ring in the remote control's center. It shows the color when different colors been touched, as the LED lamps is the same color.
    ●There are 9 modes in total, including 2 white static colors and 7 dynamic modes. The brightness of all static color and the speed of the dynamic modes are adjustable.
    ●In order to achieve the synchronization of more lamps, RGB Amplifier can be used.
    ●3-year warranty.

  • INQUIRY   EMAIL

Technical Parameters

Working temperature

-20-60℃

Supply voltage

DC12V~24V

Output

3 channels

Connecting mode

common anode

External dimension

L127*W41*H32 (mm)

Packing size

L147*W85*H73 (mm)

Net weight

280g

Gross weight

340g

Output gray

256 levels (RGB each)

Output current

<6A(each channel)

Output power

12V:<216W,24V:<432W

Frequency of RF remote control

433.92MHz
