LED Dimmer with touch Remote

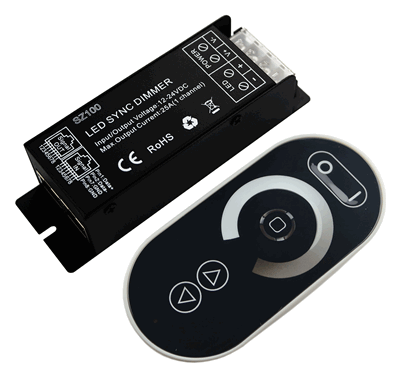

  • SC100-SYNCDIM-TOUCH RF Touch Dimmer

    Product Feature

    ●Adopt PWM technology, and the dimming ring in the center has 128 levels in different brightness value, smooth and flicker-free.
    ●High watt output design, up to 1*25A/ 300W.
    ●Easy connection to achieve multiple dimmers sync-work by RJ45 terminal.
    ●Adopt RF remote control technology and full touch design.
    ●Designing for: LED constant voltage single color product like LED single color strip.
    ●3-year warranty.

  • INQUIRY   EMAIL

Technical Parameters

Working temperature

-20-60℃

Supply voltage

DC12V~24V

Output

1 channel

Connecting mode

common anode

External dimension

L127*W41*H32 (mm)

Packing size

L147*W85*H73 (mm)

Net weight

280g

Gross weight

340g

Output gray

256 levels

Output current

<25A*1CH

Max. Output power

300W

Frequency of RF remote control

433.92MHz
